X-RAY METROLOGY

1. Capture 1000s of X-ray images
2. Compile the X-ray image data to create a 3D visualization
3. Find surfaces on the 3D data
4. Perform measurements on these surfaces

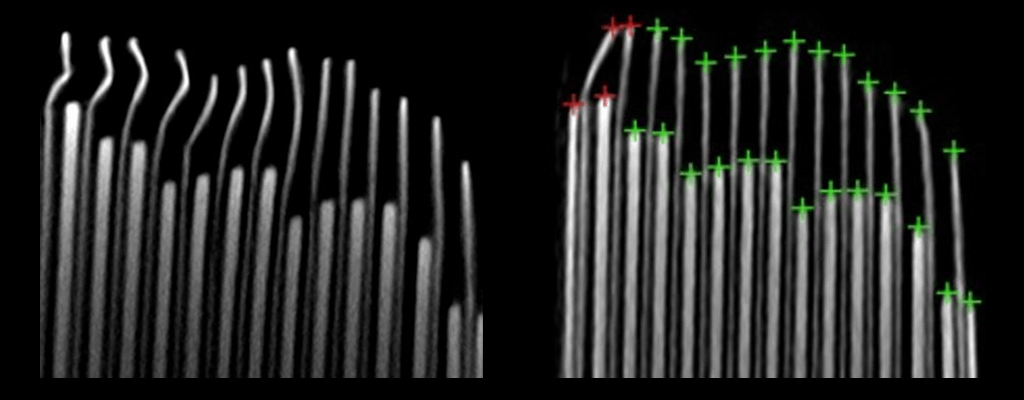

CT BATTERY
INSPECTION

1. Capture over 1000 X-ray images in less than 5 seconds
2. Use special computing to find distances between anodes and cathodes
3. Does the battery pass inspection?
YES or NO?

Our CT Battery Inspection Solution

The

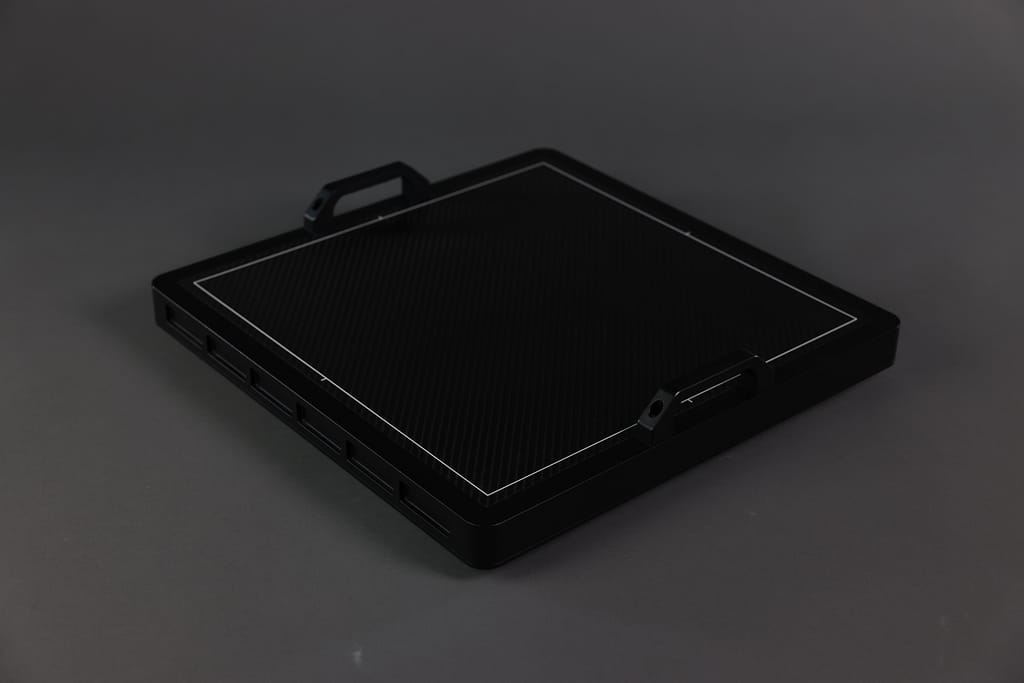

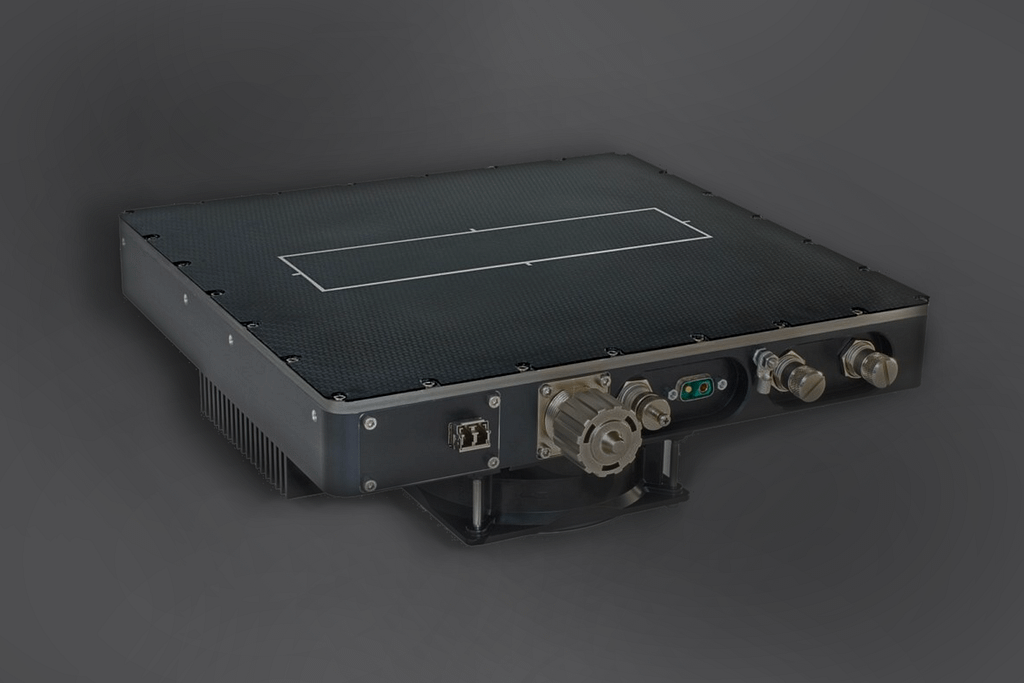

DC-THOR.10G

High Speed Photon Counting CT

The DC-THOR.10G range of photon counting area detectors are designed for ultimate speed and thus well suited for imaging quickly moving objects, dynamic processes or extremely fast x-ray inspection.

At a glance:

-Ultra fast photon counting detector

-Noise free read-out

-Long detector lifetime

-IP 67

More Details

NOTE: For Reference Only. Specifications are subject to change without notice.

Features and Benefits

-Ultra fast photon counting detector

-Noise free read-out

-Long detector lifetime

-IP 67

DETECTOR SIZES	100x50	200x50
ACTIVE AREA (D) X (E) mm2	102 x 51	202 x 51
PIXEL MATRIX	1024 x 513	2023 x 513
ENERGY RANGE (kVp) 160 = 40-160 300 = 40 – 300	X X	X X
MAX SPEED (fps) [1]	980 / 5000	490 / 2600
Variants: A = Air-cooled W = Water cooled	X X	X X

NOTE: For Reference Only. Specifications are subject to change without notice.

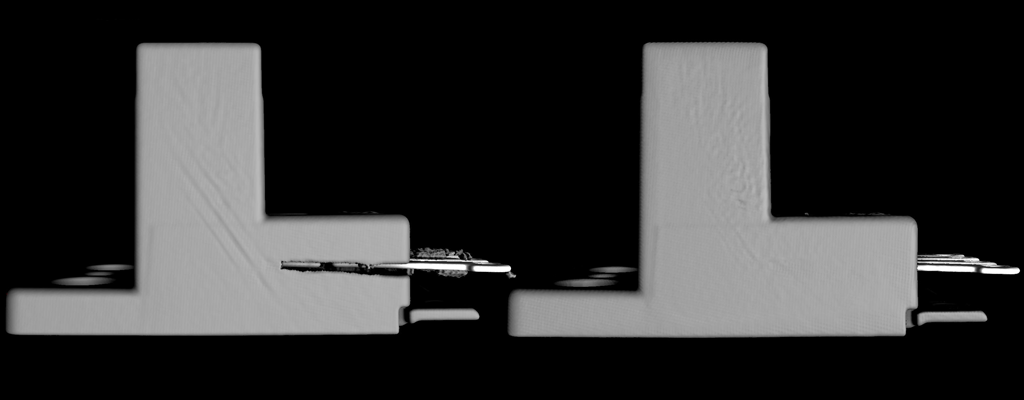

CONNECTOR
INJECTION
MOLDING

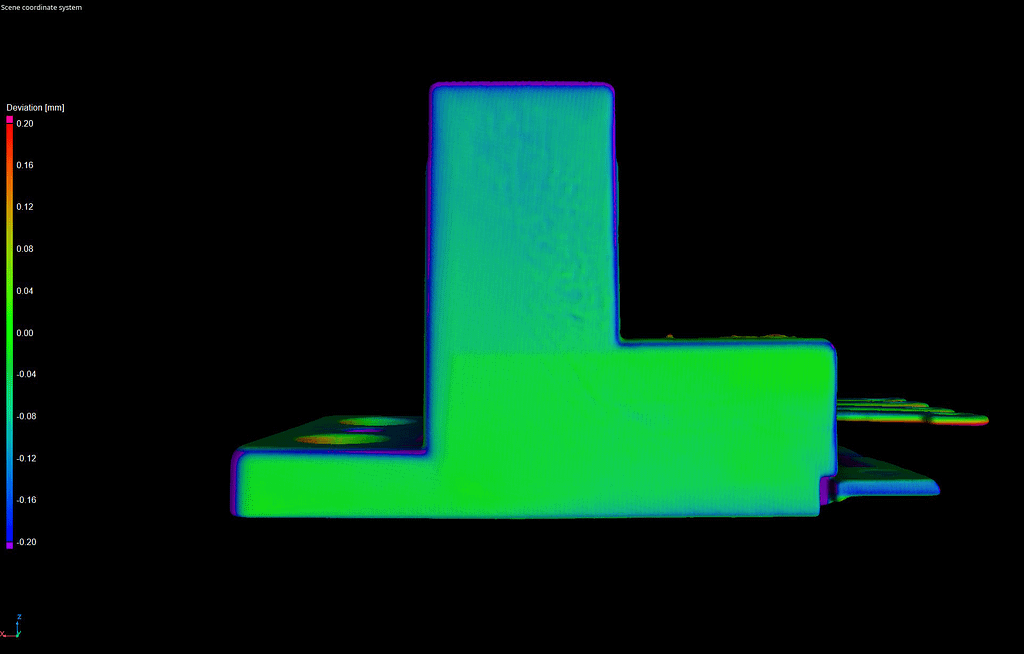

1. Capture over 1000 X-ray images of the multi-material part
2. CST Algorithms reconstruct the 3D volume, find the materials, and clean up the part surfaces

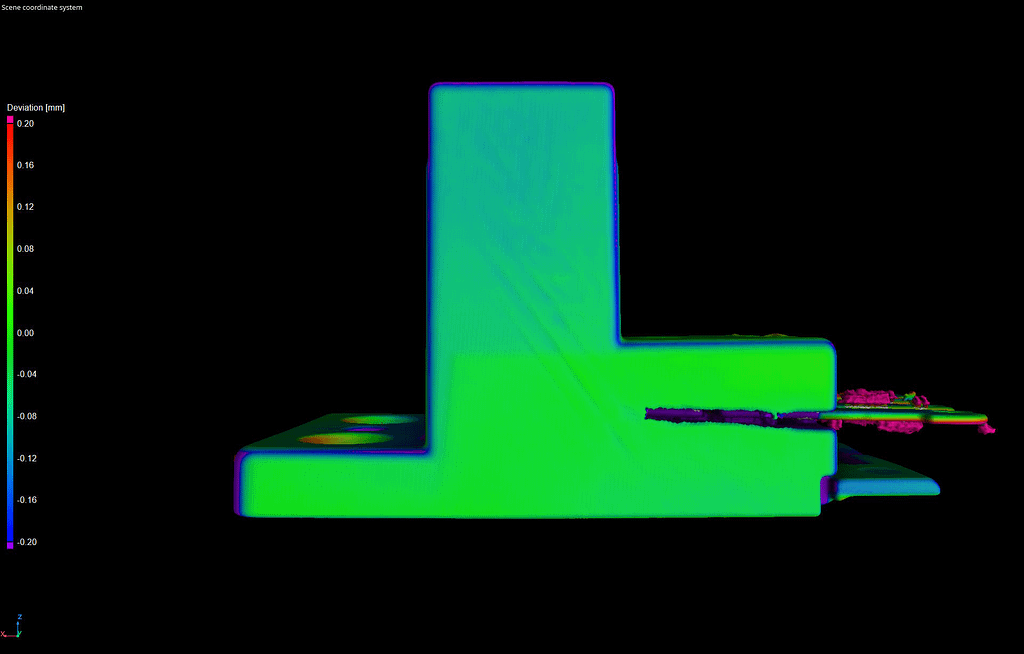

3. Perform measurements – and adapt the casting tool

Our Connector Injection Molding Solution

OUR
SOLUTION

XRD 3131N and CST Tools

Notoriously difficult to scan! That is what Plastic injection moldings with metal inserts are. Plastic is great for CT scanning, and so is metal – the combination of them is very hard to scan. Varex’s fully 3D volumetric based MMBH correction algorithms bring out the clean surfaces you need to make accurate measurements. Click on “X-Ray setup” and read more about CST and the XRD 3131N to get the best surfaces – surfaces you can measure on!

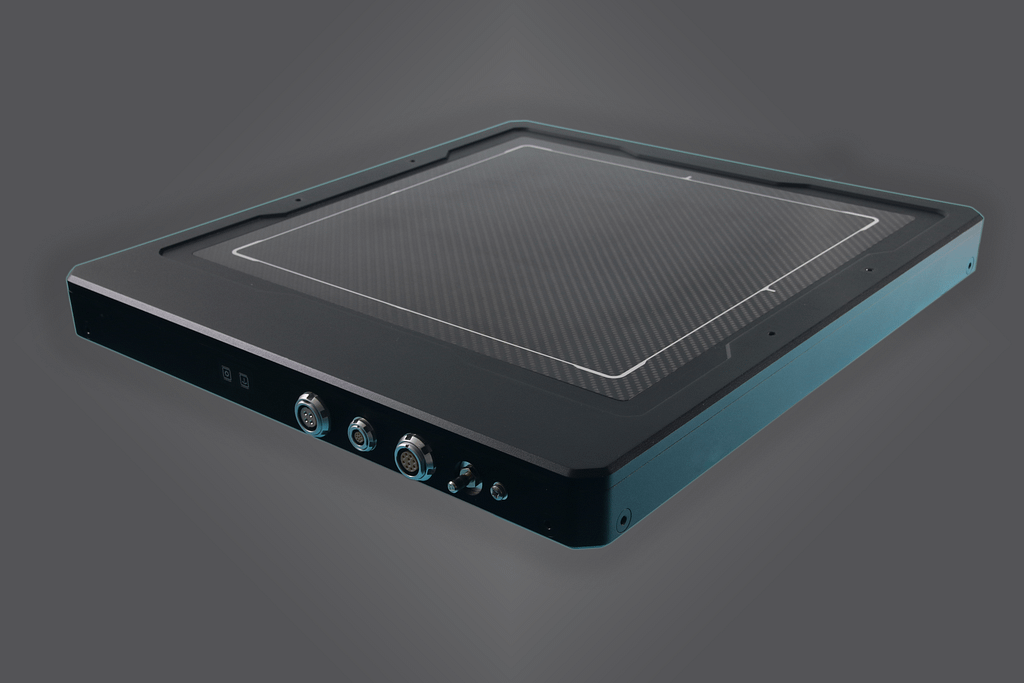

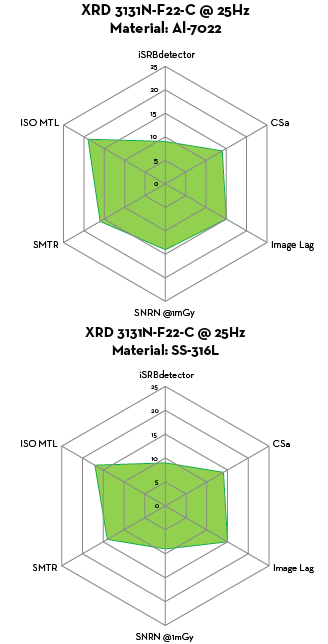

XRD 3131N
X-ray Detector

At a glance:

-High resolution with high speed

-25 fps @ 100 μm

-Selectable Modes up to 150 fps

-Designed for 24/7 Applications

-Ultra high sensitivity

-Up to 450 kV

-Real time corrections

More Details

CST Tools

At a glance:

-Comprehensive CBCT software development toolkit

-Supports different Varex panels, geometries, and scan types

-Supports simultaneous acquisition and reconstruction processing

-Supports large volumes, exceeding 4k³ voxels (for FDK)

-Supports parallel processing on multiple GPUs

-Pre-configured image processing pipelines

More Details

TURBINE
BLADE

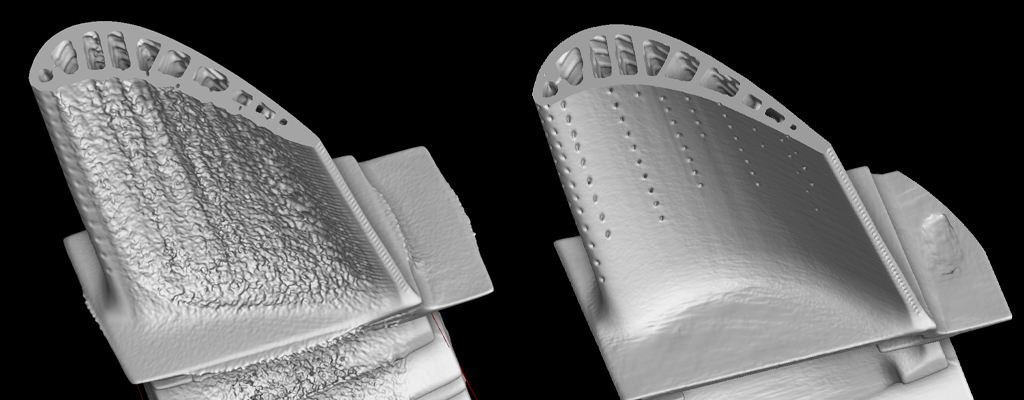

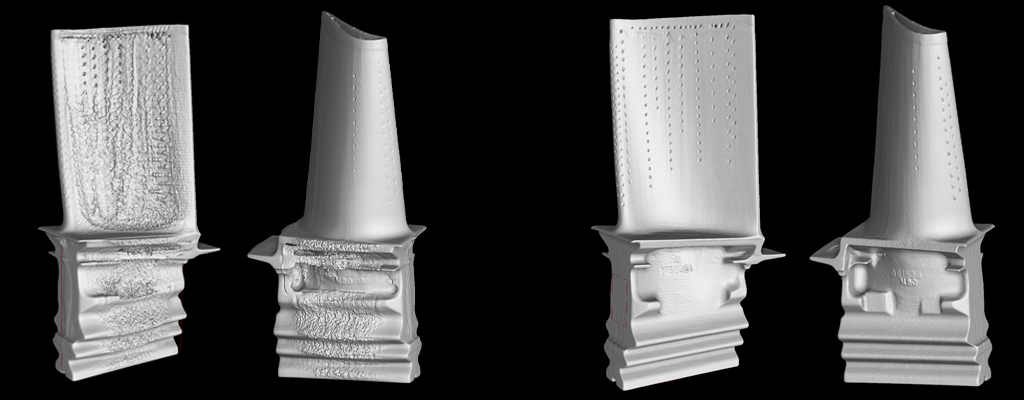

1. Capture over 1000 X-ray images at 450kV
2. CST Algorithms detect scatter from the Inconel, and clean up the part surfaces
3. Perform measurements – is the blade safe? YES or NO

Our Turbine Scanning Solution

OUR
SOLUTION

XRD 3131N, HPX-450-11,
and CST Tools

XRD 3131N
X-ray Detector

At a glance:

-High resolution with high speed

-25 fps @ 100 μm

-Selectable Modes up to 150 fps

-Designed for 24/7 Applications

-Ultra high sensitivity

-Up to 450 kV

-Real time corrections

More Details

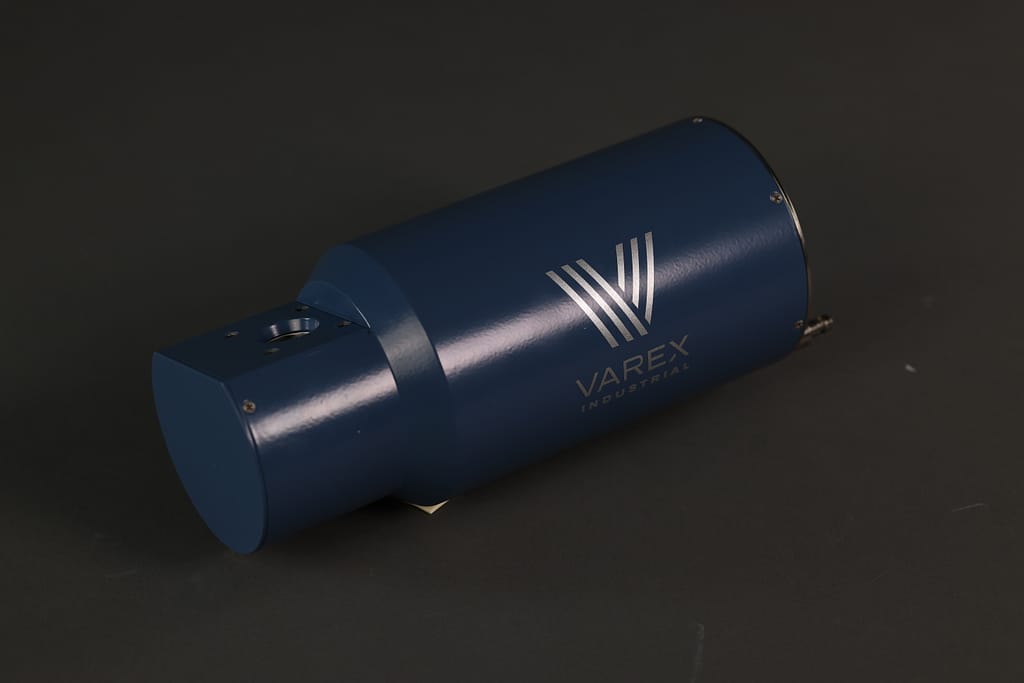

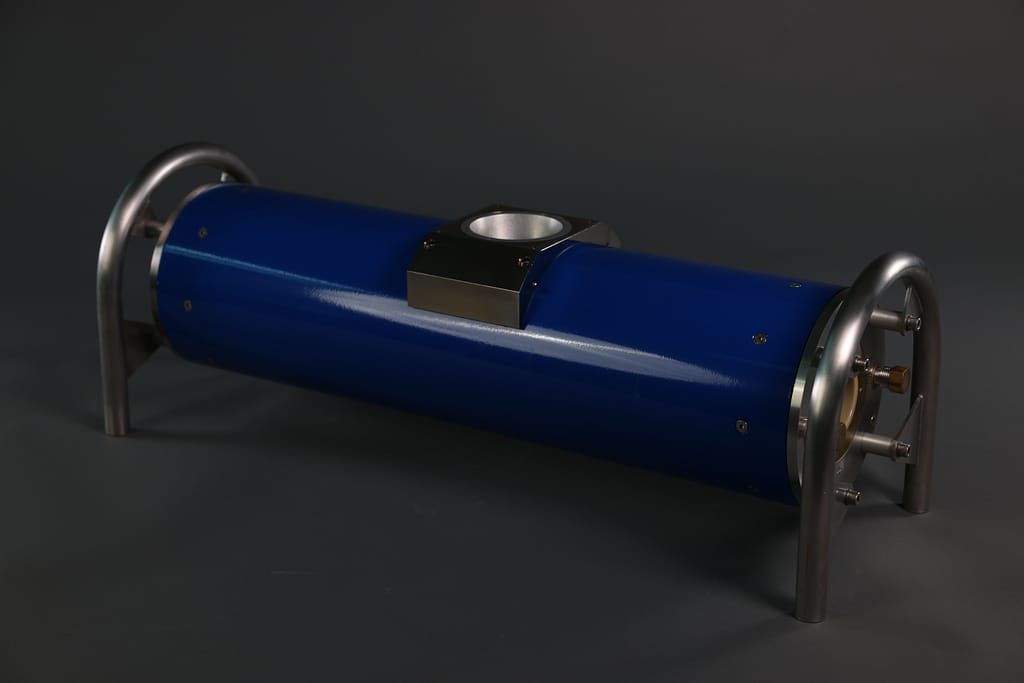

HPX-450-11
X-ray Tube

At a glance:

-Designed for continuous operation

-Operating energies from 100kV to 450kV

-Focal spot sizes of 0.4mm (small) and 1.0mm (large) for high resolution imaging

-Oil cooled design rated for 700 W power on the small focus and 1500 W power on the large focus

-Beryllium window for minimal inherent filtration

-30° x 40° coverage area

More Details

CST Tools

At a glance:

-Stable, easy-to-use API supporting both .NET and C++ host applications

-Supports different Varex panels, geometries, and scan types

-Supports simultaneous acquisition and reconstruction processing

-Supports large volumes, exceeding 4k³ voxels (for FDK)

-Supports parallel processing on multiple GPUs

-Pre-configured image processing pipelines

More Details

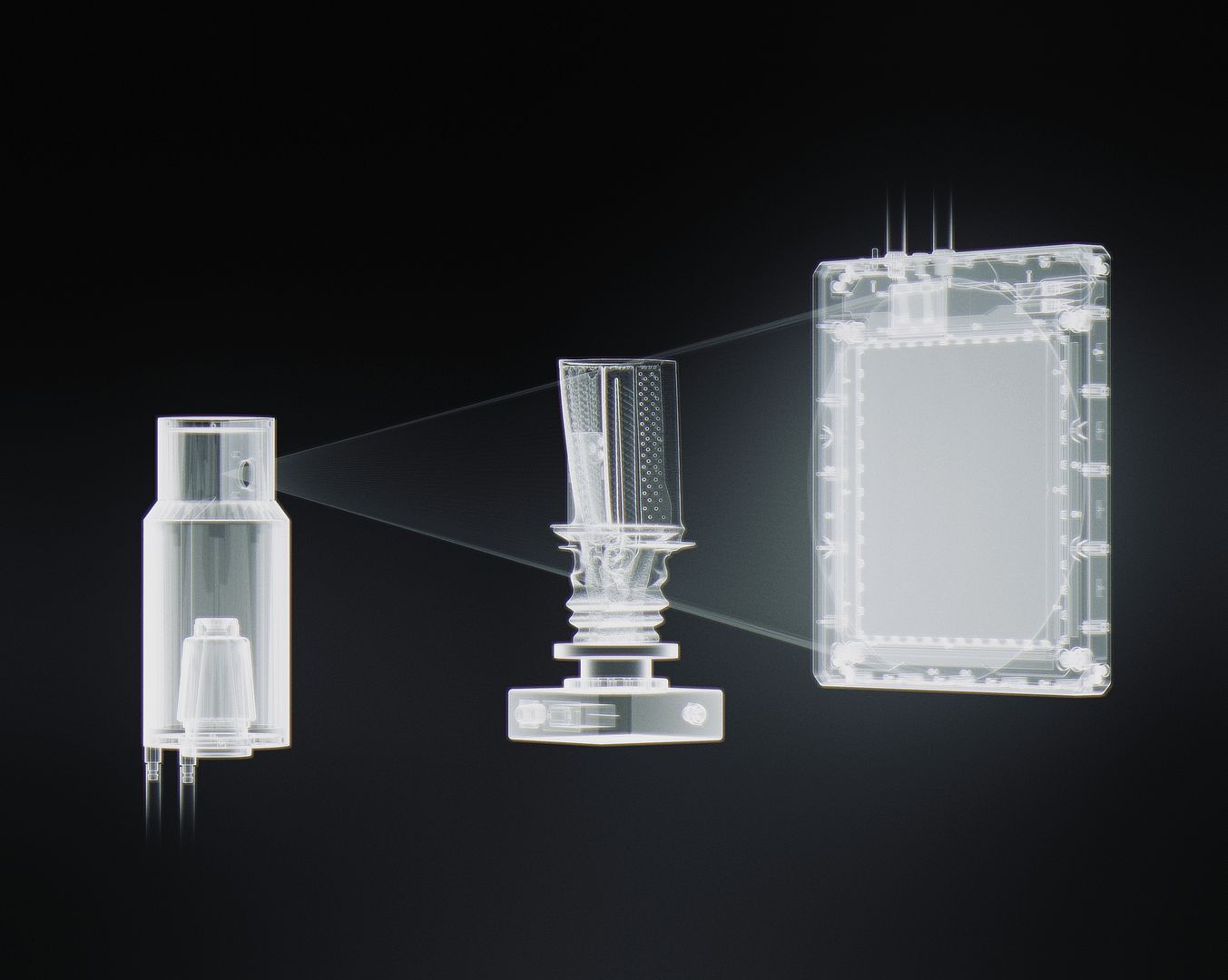

X-RAY SETUP

X-ray
Tubes

CST
Tools

X-ray
Detectors

X-ray Tubes

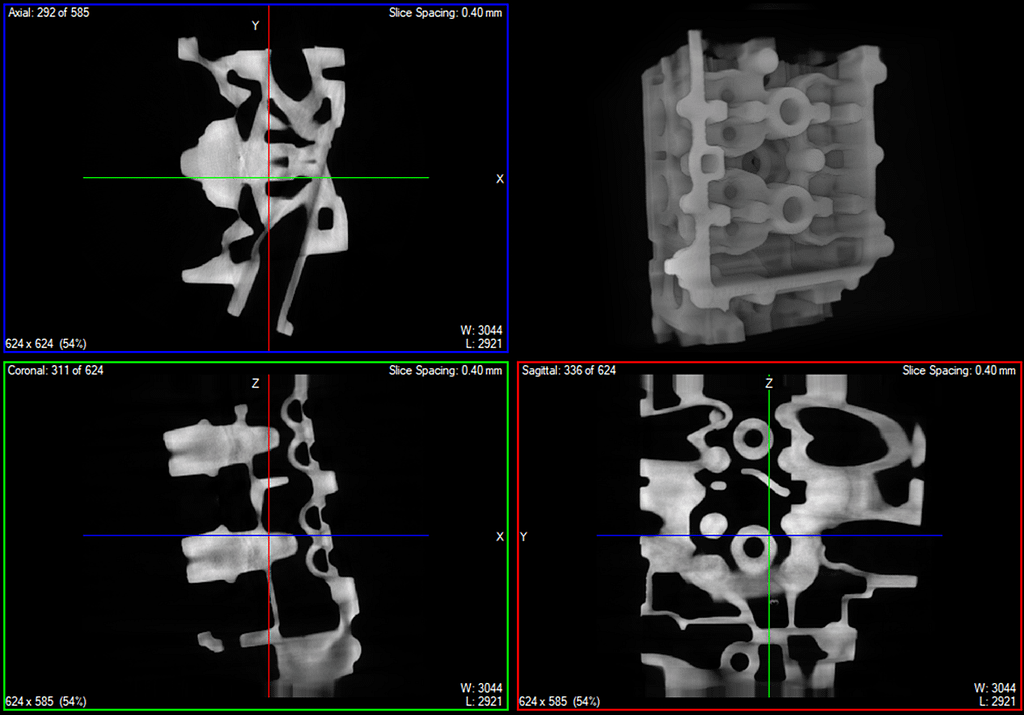

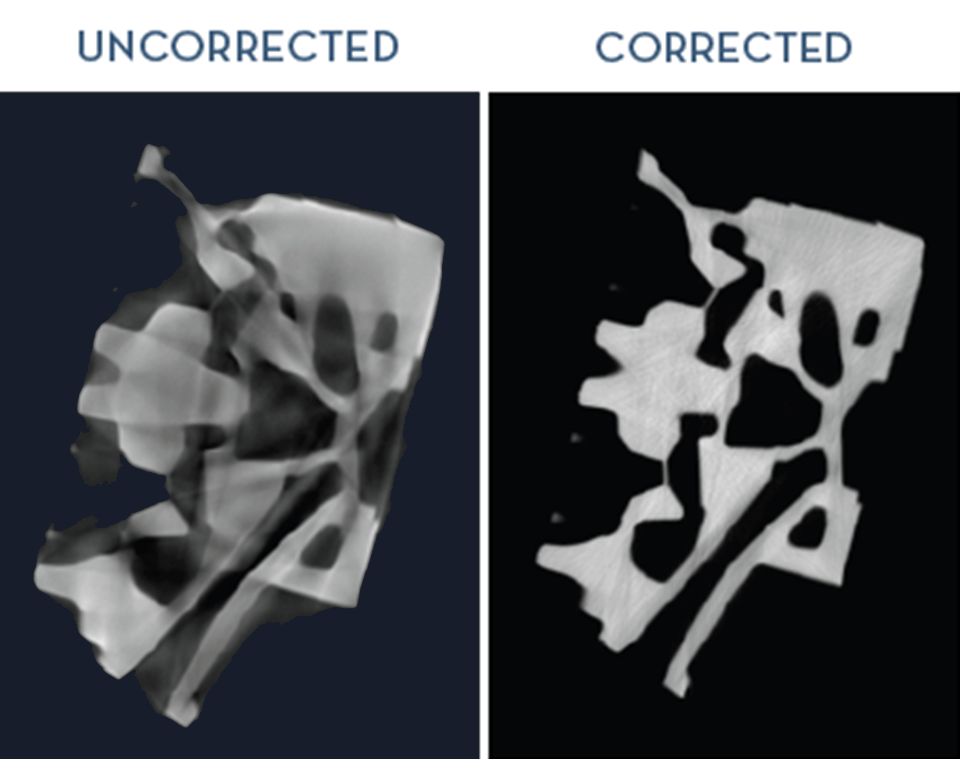

CST Tools

Comprehensive CBCT software development toolkit
Algorithms and corrections:
FDK Recon (CPU, GPU), Statistical Iterative Recon (GPU)

9-DOF geometry, projection matrices
Geometry calibration tools (phantoms and software):
Detector alignment, gantry wobble, system geometry

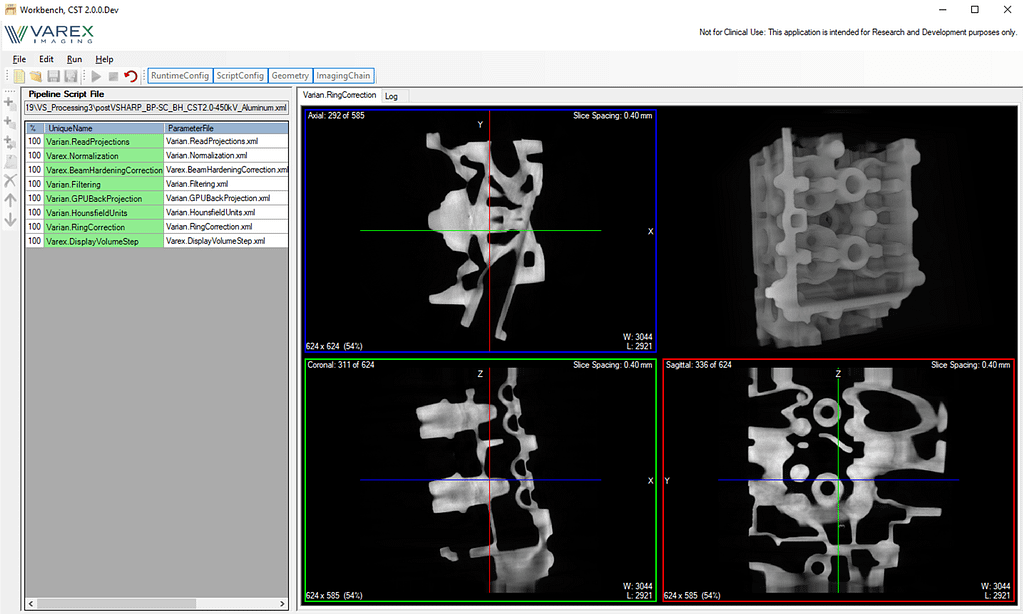

Workbench for visualization and pipeline prototyping

Easy-to-integrate, XML file-driven, real-time pipeline

More Details

X-ray Detectors

FEATURES AND BENEFITS

15 fps @ 150 µm, 30 fps @ 300 µm (full FOV)
115 fps @ 600 µm (432 mm x 72 mm FOV)
150 µm pixel pitch, 2880 x 2880 pixel matrix
4 binning and 7 FOV options
65,536 grey levels (16-bit ADC)
Ultra high sensitivity
Selectable gain settings
Up to 450 kV
Shielded from the effects of MV radiation scatter
(Radiotherapy)
Fiber optical interface
• Real time corrections
APPLICATIONS1
Non-destructive testing (NDT)
Inline Cone Beam Computed Tomography (CBCT)
Metrology
Scientific applications
Radiotherapy & Radiosurgery

SENSOR
Panel: Single substrate amorphous silicon active TFT-diode array
Scintillator: CsI: Tl or various Gd2 O2 S:Tb (Gadox)
Pixel Matrix: 2880 × 2880 @ 150 μm pitch
Total Area: 432 mm × 432 mm

ELECTRONICS
Amplifiers: Low noise ASICs with 6 user selectable gain settings
ADC: 16-bit

MECHANICAL
Size: 500 mm (w) × 500 mm (l) × 66.8 mm (h)
Weight (approx.): 29 kg
Housing: Aluminum with carbon-fiber entrance window

COMMUNICATIONS
Data I/F: Fiber optic to PCIe frame grabber
X-ray I/F: Integrated X-ray trigger control
Software: Support for 32 and 64 bit Windows® OS

IMAGE PROCESSING
Type: Real time offset, gain, defective pixel corrections on frame grabber

IMAGING PERFORMANCE
Typical DQE (CsI): 76% (0 cy/mm), 60% (1 cy/mm), 44% (2 cy/mm), 32% (3 cy/mm) for RQA5
Typical MTF (CsI): 66% (1 cy/mm), 34% (2 cy/mm), 18% (3 cy/mm)
Energy Range: 20 – 450 kV
Lag (typical): < 5% 1st frame

ENVIRONMENTAL
Temperature: 10 to 35°C (operating), -10 to 50°C (storage)
Humidity: 30% to 70% RH (operating, non-condensing)
Vibration: IEC/EN 60721-3-7 class 7M2 (10-100 Hz: 1 g)
Shock: IEC/EN 60721-3-7 class 7M3 (11 ms, 30 g)

POWER
Supply: 100 – 240 VAC, 50/60 Hz, XRD-EPS
Power Supply Dissipation: 31 W

Read-out Modes (Other Field of view/binning combinations are available)

Field of View (mm2 )	Pixel Matrix	Binning	Pixel Pitch (µm2 )	(fps)
432 × 432	2880 × 2880 1440 × 1440 960 × 960 704 x 720	1 × 1 2 × 2 3 × 3 4 x 4	150 300 450 600	15 30 45 60
288 × 288	1920 × 1920 960 × 960 640 x 640 480 × 480	1 × 1 2 × 2 3 × 3 4 x 4	150 300 450 600	20 40 60 75
216 × 216	1440 × 1440 736 × 720 480 x 480 384 x 360	1 × 1 2 × 2 3 × 3 4 × 4	150 300 450 600	25 50 70 85
432 × 216	2880 × 1440 704 × 240	1 × 1 4 × 4	150 600	25 100
432 × 72	2880 × 480 704 × 120	1 × 1 4 × 4	150 600	60 115

Features and Benefits

-Ultra fast photon counting detector

-Noise free read-out

-Long detector lifetime

-IP 67

DETECTOR SIZES	100x50	200x50
ACTIVE AREA (D) X (E) mm2	102 x 51	202 x 51
PIXEL MATRIX	1024 x 513	2023 x 513
ENERGY RANGE (kVp) 160 = 40-160 300 = 40 – 300	X X	X X
MAX SPEED (fps) [1]	980 / 5000	490 / 2600
Variants: A = Air-cooled W = Water cooled	X X	X X

NOTE: For Reference Only. Specifications are subject to change without notice.
