XRD 4343RF

01

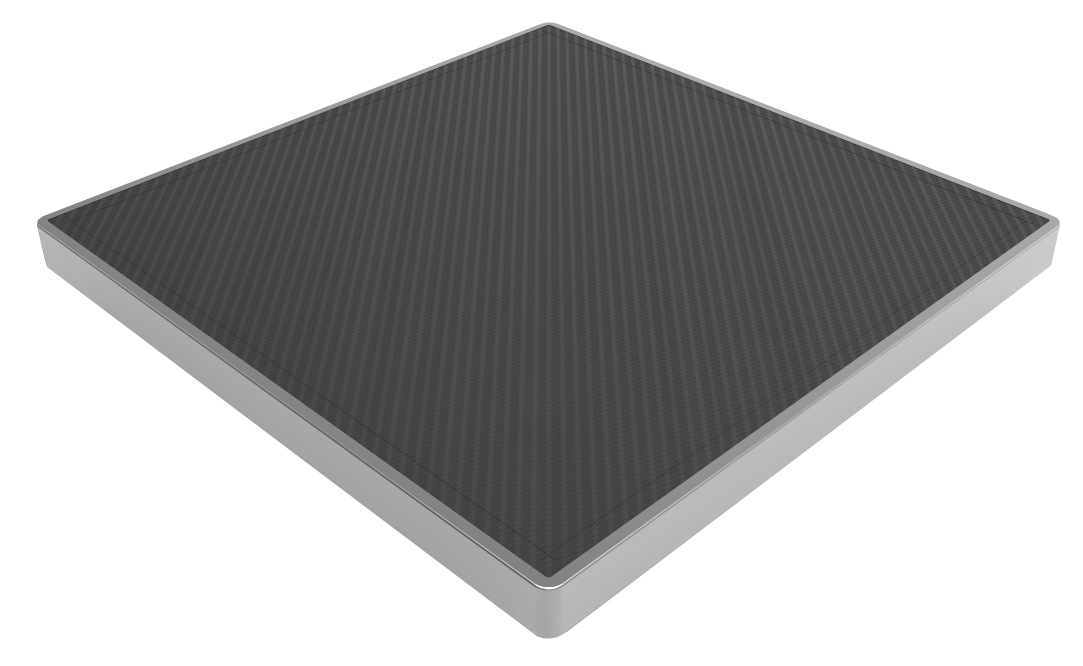

The XRD 4343RF is based on the next generation platform of Varex Imaging amorphous silicon flat Panel X-ray detectors. The enhanced performance of the XRD 4343RF supports a full 43 x 43 cm2 (17 x 17 in2) field of view providing superior imaging for fluoroscopy, radiography and cone beam CT (CBCT) applications. The detector offers frame rates up to 85 fps and has a direct deposited cesium iodide scintillator for superior image quality.

Rapid system integration is accomplished with real-time image processing PCIe board for host computer, integrated trigger, X-ray synchronization circuitry, and a comprehensive software library for image acquisition and processing.

Features and benefits for the XRpad 4343 F flat panel detector include:

  • 15 fps at 150 μm pixel pitch
  • 2880 x 2880 pixel matrix
  • Excellent DQE
  • 16-bit digital output
  • Fast switching between imaging modes
  • Fiber optical interface
  • Real time corrections on a PCIe card
If you are interested in this product or have any questions, please fill out our contact form below.

Contact Us
Varex Product
Technology Panel Size Pixel Matrix PIXEL SIZE µm
XRD 4343RF
a-Si
43 cm x 43 cm
2880 × 2880
150
